Finding an inventive solution.
During design, precast concrete construction was selected over structural steel due to its delivery time and cost advantages, and Wells was brought in as a prime consultant early on in the agreement. Precast, the architect says, “saved us six months and the precast structural system came in at a lower cost than the structural steel.”

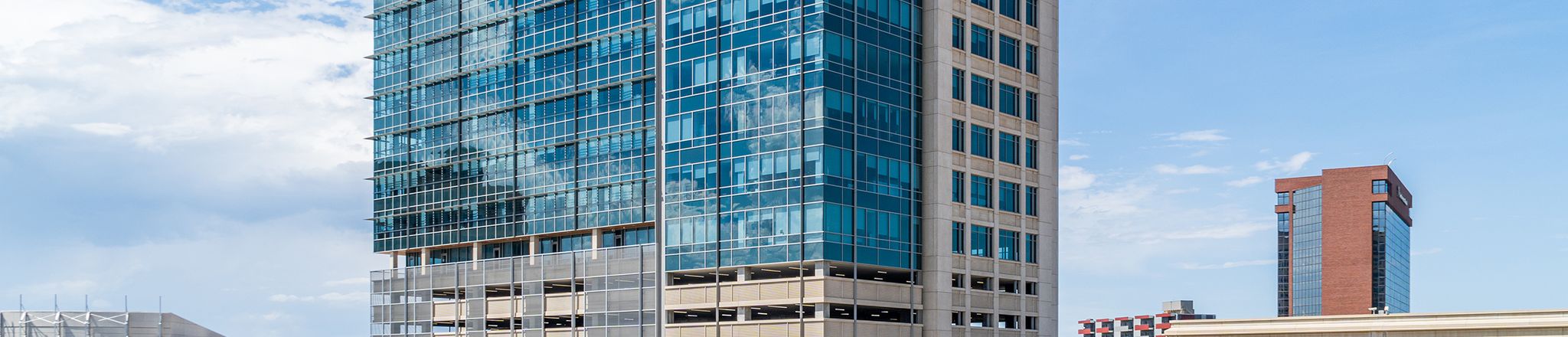

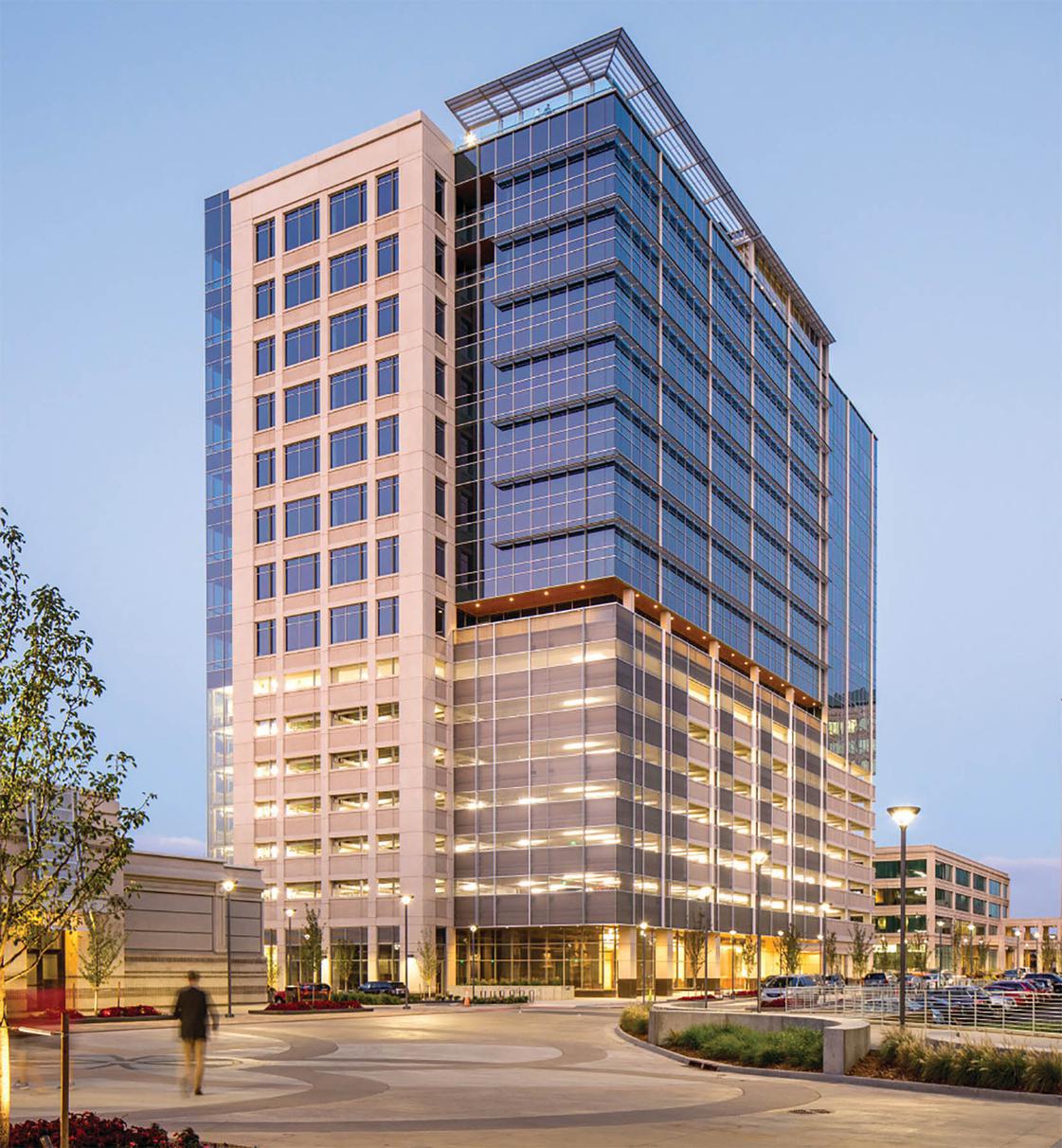

The total precast structure includes precast columns, double tees, inverted tees, beams and spandrels. Exterior walls are spandrels with curtainwall glass. Precast was even incorporated into the building architecture by leaving the underside of the double tees exposed in the offices. In addition, mullions for the glazing system were all designed to align with the double tees.
In the office levels, L-beams support the double tees. Adjacent to these are “wallumns.” These are built-up precast wall column sections where exterior window wall panels are cast with large pilasters on the back to reduce the number of pieces. The pilasters helped carry the gravity load to the foundations.
Punched window wall panels were pre-glazed in Wells' plant prior to shipping and erection. Glazing had to be protected for weld slag during the erection process. So, a protection system was developed using aluminum frames and light weight fire blankets that were installed over the windows at the jobsite prior to setting.

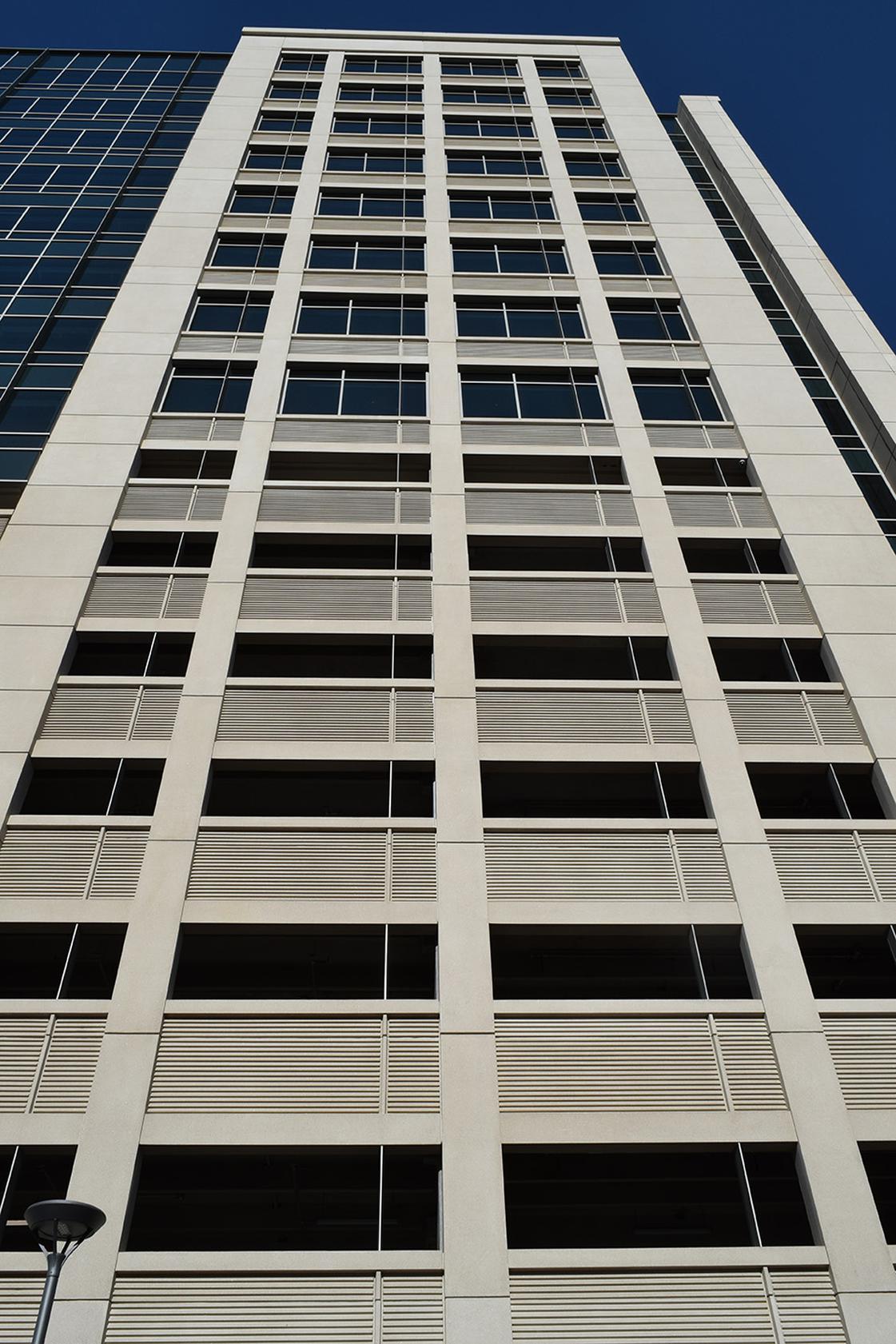

In the garage levels, load-bearing precast spandrels support the double tees along two facades. Non-load-bearing spandrels cover the other sides. The double tees span 45 feet and are field-topped.
