Bringing value to Chicago's suburbs.

Just west of Chicago’s downtown sits Oak Park, Ill., a historic locale with eclectic charm that is a hotspot for families and young professionals alike. New developments are often met with trepidation as the locals take great pride in the neighborhood they have created. Any new project must bring value to the community, as well as match the aesthetic they've built throughout the years, to be accepted.

The $90 million property offers 460,000 square feet of retail, parking and residential space across 12 stories. With 263 luxury apartments on the top eight levels and a commuter train nearby, offering adequate parking was essential to increase potential revenue for the owner – from tenants and commuters.

Precast also added value to the structure’s exterior, which was incredibly important to earn local praise and acceptance. The developer wanted a brick finish, without the high price tag, or the added thickness. Precast panels solved both issues – providing a structural and design solution in one product.

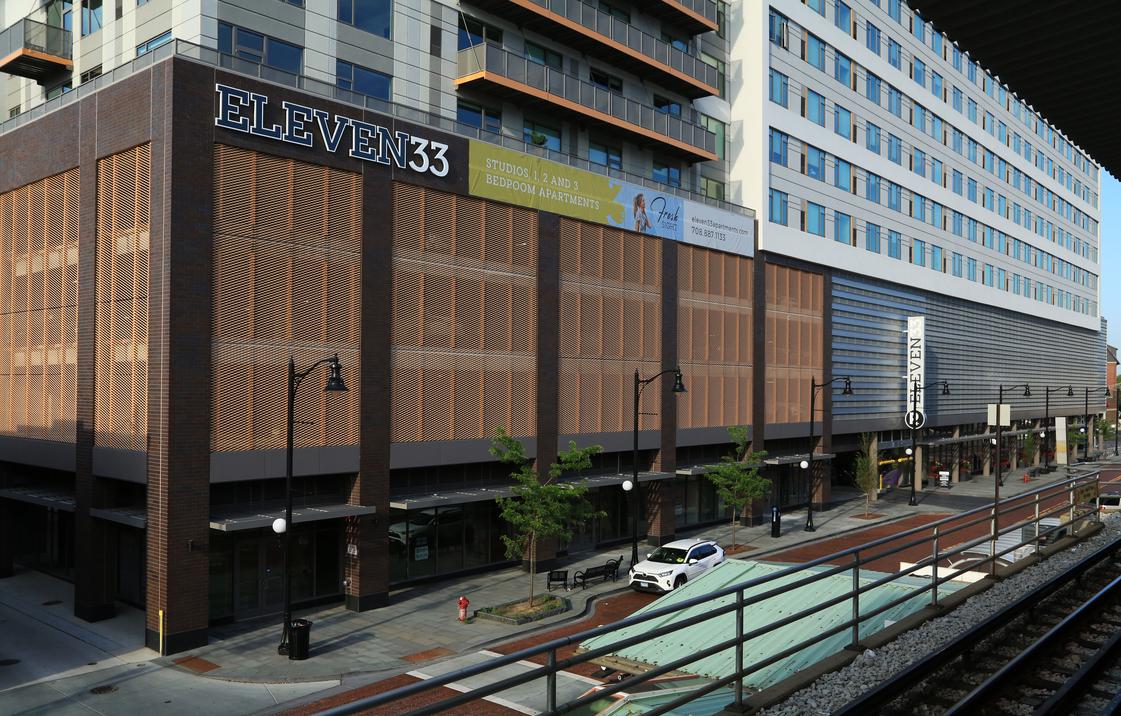

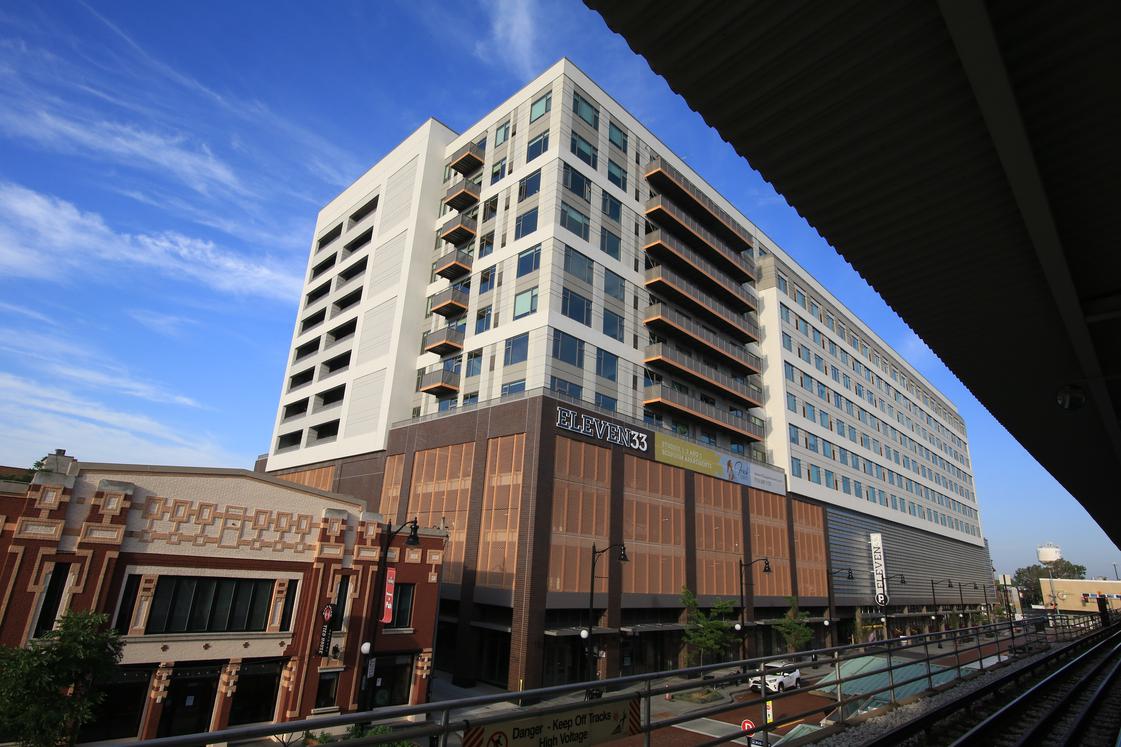

Full view of Eleven33 Spacer Image Interior parking garage

A strict construction schedule.

Installation was a carefully orchestrated affair, as the location provided challenges from all directions. While the project sits on a corner lot, one side was erected mere feet from another building, and the two street sides brought the challenge of working around nearby train stations. Delivering product as produced alleviated the need for any on-site storage, and it was installed in phases to allow upper level construction to begin before the entire parking structure was completed. In this staged approach, the build was rapid and created minimal disruption to the surrounding area – which was crucial to be a good neighbor and to maintain good community relationships for the owner/developer.

180,539 square feet, 4,479 lineal feet of precast product that were to be installed in only 76 days.

Schedule was a critical component to the success of the project and was executed as-planned.

David Mooney General Contractor

It is estimated 15-20% in overall project costs were saved when switching from CIP to precast.

Design challenges.

City projects always bring with them their own set of challenges. From location to the need to respect the existing neighborhood – this project was no different.

Location was perhaps the biggest challenge of this project. While a corner lot, the south side of the structure was erected nearly on the property line mere feet from another structure, and the two street sides were restricted by their close proximity to nearby Metra and CTA train tracks. Because precast is manufactured off-site and can be delivered as needed, it was the only solution that could navigate these constraints. The nearby train tracks were also elevated, so careful partner coordination was needed when both precast and the steel residential structure above were being installed at the same time. Not only was crane scheduling imperative, the position and counterbalance were calibrated so that the crane never swung over the tracks.

Using precast for the parking levels also helped the developer with another challenge – city-mandated height restrictions. The total structure could not exceed 135 feet without asking for a variance, so every inch mattered. Because precast beams could be fitted for mechanical piping to run along the bottom of the structural double tees, precious inches were saved because the mechanicals did not need to be dropped. It also made it easier for the developer to hide all mechanicals in a drop ceiling – adding to the clean aesthetic of the interior structure.

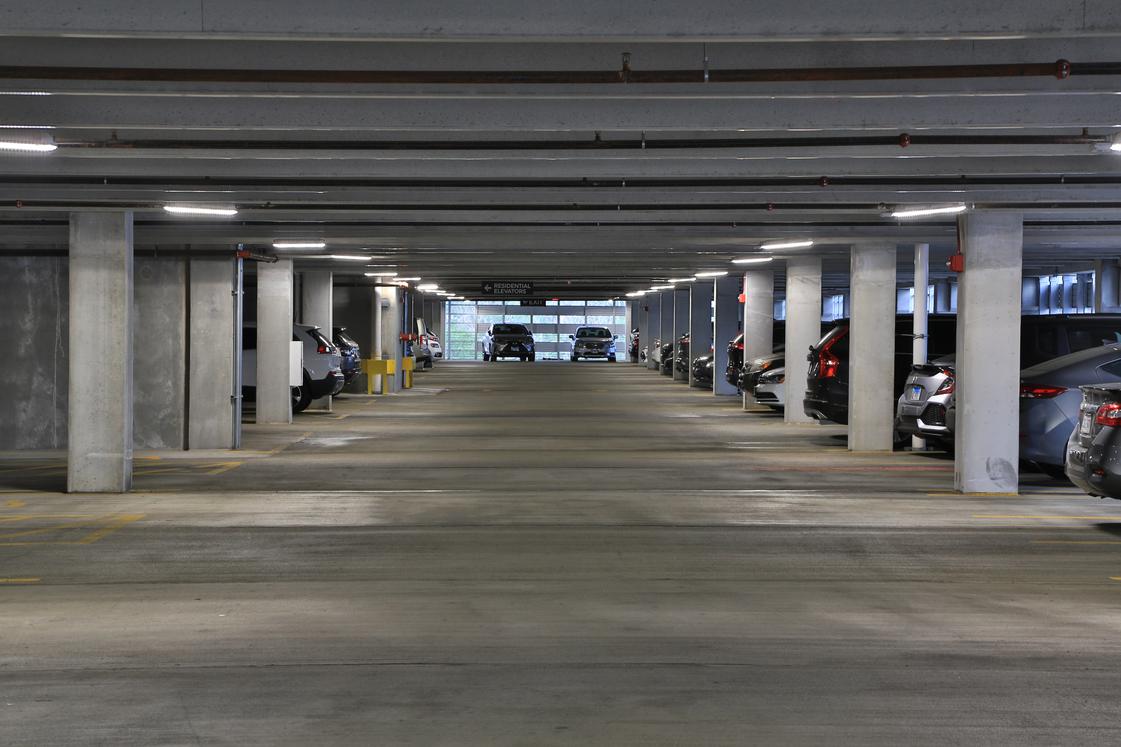

Close up of parking garage

3D modeling assists in project flow.

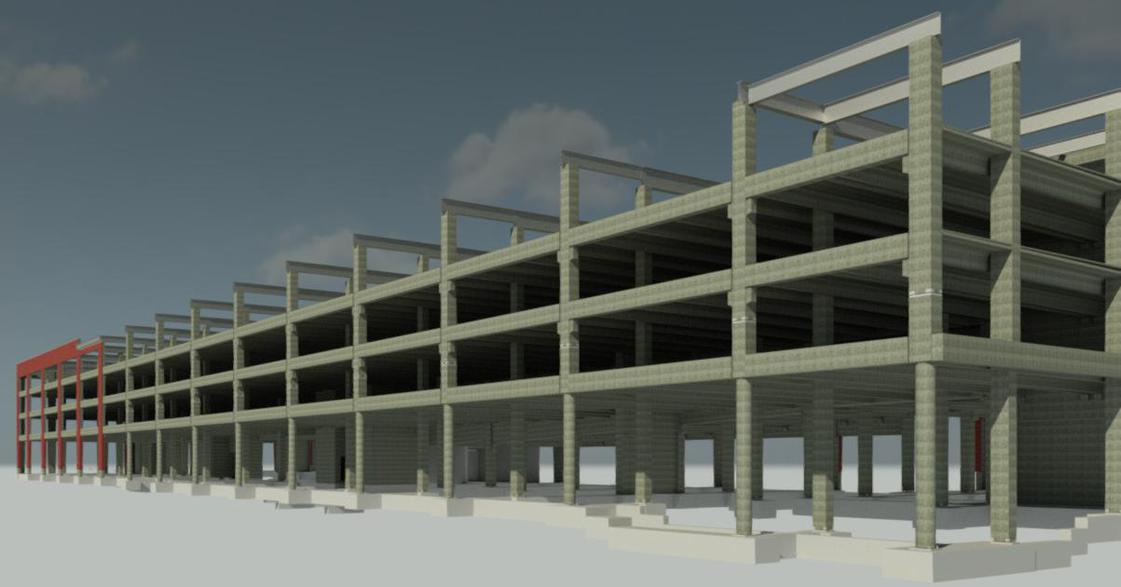

3D BIM Model

The precast team created a 3D BIM model that allowed for easier coordination between trades, and when designs were approved, started right away on production

The precast Revit model aided considerably in the coordination efforts between the parking podium and the residential component above. It allowed the design team to review and work with the precast engineers to make sure the final result exceeded expectations

Zisong Feng Architect
